SOLAR SUBMERSIBLE PUMP

Solar photovoltaic systems are energy conversion systems, which convert solar energy into electrical energy. Solar photovoltaic system operates on the basis of the photovoltaic effect in a silicon junction diode designed to facilitate the collection of usable magnitudes of electricity. Numbers of cells are string up in series to generate power at usable voltages. The solar panel contains solar cells which produce electricity when exposed to sunlight. A solar panel water pumping system essentially consists of a solar photovoltaic panel which powering a water pump through the pump controller.

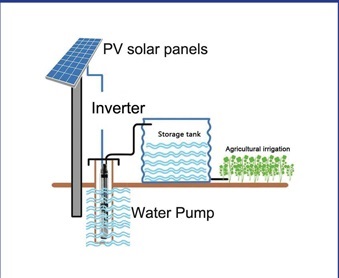

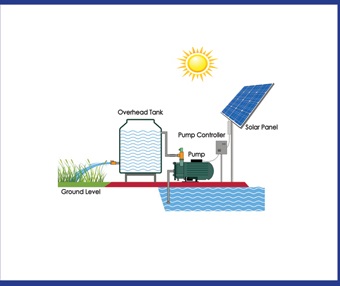

Schematic Working Principal

gl-image1-new
  • A solar panel water pumping system essentially consists of a solar photovoltaic panel which powering a water pump through the pump controller. A solar powered water pumping system is composed several PV (photovoltaic) panels. solar cells are the building block for solar panels.
  • The DC current is collected via the panel. This DC current is used to run the pump which pumps water whenever the sun shines and the excess water could be stored in an overhead water tank for the later usage.
  • The Photovoltaic water pump controller regulates the output current in accordance with sunlight intensity to achieve the maximum power point tracking (MPPT), maximizing the use of solar energy

    • Benefits-of-Solar-Water-Pumping-Systems

  • Clean and Pollution Free Energy, Eco Friendly.
  • No fule cost & minimum maintenance cost.
  • High flow system for faster tank .
  • More economical than diesel pump sets in long run.
  • MPPT-Maximum Power Point Tracking for maximizing efficiency of input power.
  • Enable cultivation of extra crop
  • Help in providing critical protective irrigation in water scare.
  • Save times & labor.

    • Salient Features


  • Ease of lnstallation and virtually no maintenance.
  • Solar photovoltaic system operates on the bas facilitate the collection of usable magnitudes of electricity.
  • Dry running as well as Over/Under voltage protections.
  • Smooth surface reduced significance hydraulic losses
  • Ensures most compact design of Borewell pumps
  • Reduced Nos of Stages for equivalent performance
  • Sustainable uniform performance for years.
  • Driver system is optimizing for pumping under adverse input power conditions unique to solar array.
  • Controller construction is ruggedized for hostille environmental conditions.
  • In-built MPPT for maximum input Power.
  • PV reverse polarity protection
  • Assured High corrosive resistance
  • Excellent result in high head conditions.
  • Proven superior wear and tear resistance

    • HP KW PV Array Capacity (Wp) Head Range (in Meters) Opeating Head (in Meters) Discharge (LPD)
    1 0.75 900 30-45 30 35028
    1 0.75 900 60-90 60 1400
    1 0.75 900 90-120 90 8000
    2 1.5 1800 30-45 30 58369
    3 2.2 3000 30-45 30 25808
    3 2.2 3000 50-70 50 62859
    3 2.2 3000 50-70 50 60560
    5 3.7 4800 20-35 20 243000
    5 3.7 4800 30-45 30 166270
    5 3.7 4800 50-70 50 124400
    5 3.7 4800 70-100 70 78230
    5 3.7 4800 100-150 100 43520
    7.5 5.5 6750 50-70 50 43520
    7.5 5.5 6750 70-100 70 108400
    7.5 5.5 6750 100-150 100 75600
    10 7.5 9000 50-70 50 229450
    10 7.5 9000 70-100 70 156700
    10 7.5 9000 100-150 100 107400
